PPE: Pliocene Equilibrium Reconstruction

PPE: Pliocene Equilibrium Reconstruction#

[1]:

%load_ext autoreload
%autoreload 2

import os
os.chdir('/glade/work/fengzhu/GitHub/cfr/docsrc/v2026/notebooks')
import numpy as np
import pandas as pd
import xarray as xr
import cfr
cfr.use('v2026')
print(cfr.__version__)
import datetime
print(f'Last update: {datetime.date.today()}')

2026.4.8
Last update: 2026-04-16

Obs Setup#

[2]:

da_truth = xr.open_dataset('./data/ppe_Plio400ppm_ann.nc')['TEMP'].isel(z_t=0).mean('time')
da_truth

[2]:

<xarray.DataArray 'TEMP' (nlat: 394, nlon: 320)> Size: 504kB
array([[nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       ...,
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan]],
      shape=(394, 320), dtype=float32)
Coordinates:
    TLAT     (nlat, nlon) float64 1MB ...
    TLONG    (nlat, nlon) float64 1MB ...
    ULAT     (nlat, nlon) float64 1MB ...
    ULONG    (nlat, nlon) float64 1MB ...
    z_t      float32 4B 500.0
Dimensions without coordinates: nlat, nlon
Attributes:
    long_name:     Potential Temperature (Annual)
    units:         °C
    grid_loc:      3111
    cell_methods:  time: mean
    path:          ['/glade/campaign/univ/uazn0034/fengzhu/CESM_output/timese...
    comp:          ocn
    grid:          g16
[3]:

R = 0.01
df = pd.read_json(f'./data/ppe_Plio400ppm_obs_SST_R{R:.2f}.json')
obs = cfr.Obs(df)
obs.setup()
obs.df

[3]:
pid lat lon time value R type psm_name
0 DSDP516.Mg/Ca -30.646322 324.994450 [3.5] [23.1653251648] 0.01 T IdenticalSST
1 DSDP552.Mg/Ca 55.593510 345.982189 [3.5] [17.0483608246] 0.01 T IdenticalSST
2 DSDP590.Mg/Ca -32.594207 162.898037 [3.5] [22.5412883759] 0.01 T IdenticalSST
3 DSDP603.Mg/Ca 35.261855 290.479297 [3.5] [25.1493167877] 0.01 T IdenticalSST
4 DSDP609.Mg/Ca 49.422589 335.045676 [3.5] [16.7079963684] 0.01 T IdenticalSST
... ... ... ... ... ... ... ... ...
103 ODP959.UK37 3.053953 356.530460 [3.5] [29.6693210602] 0.01 T IdenticalSST
104 ODP978.UK37 35.655501 357.297471 [3.5] [23.1417293549] 0.01 T IdenticalSST
105 ODP982.UK37 57.058493 343.381278 [3.5] [16.6606521606] 0.01 T IdenticalSST
106 ODP999.UK37 12.533555 281.067292 [3.5] [28.507900238] 0.01 T IdenticalSST
107 PuntaPiccola.UK37 37.115774 12.130472 [3.5] [22.895149231] 0.01 T IdenticalSST

108 rows × 8 columns

[4]:

cfr.set_style('journal', font_scale=1.2)
fig, ax = obs.plot(
    levels=np.linspace(0, 40, 21),
    cbar_kwargs={'ticks': np.linspace(0, 40, 11), 'label': 'SST [°C]'},
    cyclic=True,
    da_target=da_truth.x.regrid(),
    title='Truth',
)
cfr.showfig(fig)
cfr.savefig(fig, './figs/ppe_truth_obs.pdf')

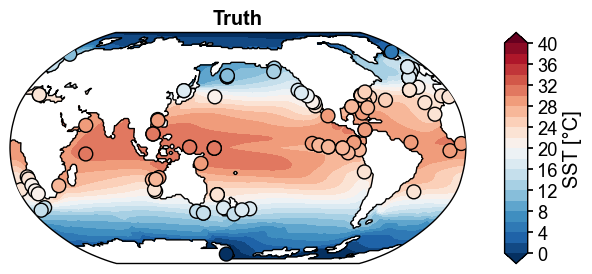

../_images/notebooks_da-ppe-equilibrium_5_0.png
Figure saved at: "figs/ppe_truth_obs.pdf"

Prior Setup#

[9]:

pm = []
case_list = ['1xCO2', '350ppm', '490ppm', '2xCO2']
for tag in case_list:
    ds = xr.open_dataset(f'./data/ppe_Plio{tag}_ann.nc')[['TS', 'TEMP']]
    pm.append(cfr.PriorMember(ds.mean('time')))

prior = cfr.Prior(pm)
prior.ds['ens'] = ('ens', case_list)
prior.ds

[9]:

<xarray.Dataset> Size: 127MB
Dimensions:  (ncol: 48602, ens: 4, z_t: 60, nlat: 394, nlon: 320)
Coordinates:
    lat      (ncol) float64 389kB -35.26 -35.65 -36.26 ... 36.68 36.68 36.05
    lon      (ncol) float64 389kB 315.0 315.8 317.2 318.0 ... 133.7 136.3 135.0
    TLAT     (nlat, nlon) float64 1MB -84.56 -84.56 -84.56 ... 72.2 72.19 72.19
    TLONG    (nlat, nlon) float64 1MB 320.6 321.7 322.8 ... 318.9 319.4 319.8
    ULAT     (nlat, nlon) float64 1MB -84.3 -84.3 -84.3 ... 72.42 72.41 72.41
    ULONG    (nlat, nlon) float64 1MB 321.1 322.3 323.4 ... 319.2 319.6 320.0
  * z_t      (z_t) float32 240B 500.0 1.5e+03 2.5e+03 ... 5.125e+05 5.375e+05
  * ens      (ens) <U6 96B '1xCO2' '350ppm' '490ppm' '2xCO2'
Dimensions without coordinates: ncol, nlat, nlon
Data variables:
    TS       (ncol, ens) float32 778kB 19.5 20.37 21.39 ... 19.82 20.87 21.65
    TEMP     (z_t, nlat, nlon, ens) float32 121MB nan nan nan ... nan nan nan
[10]:

prior.set_hcoords({
    'TS': ('lat', 'lon'),
    # 'PRECT': ('lat', 'lon'),
    # 'PSL': ('lat', 'lon'),
    'TEMP': ('TLAT', 'TLONG'),
    # 'SALT': ('TLAT', 'TLONG'),
    # 'aice': ('TLAT', 'TLONG'),
})

Run the EnKF Solver#

[11]:

da_solver = cfr.enkf.Solver(prior, obs)

da_solver.prep(
    loc_radius=10000,
    loc_method='gaspari_cohn',
    startover=True,
    get_clim_kws={
        'lat_coord': 'TLAT',
        'lon_coord': 'TLONG',
        'lat_dim': 'nlat',
        'lon_dim': 'nlon',
    },
)

>>> Proxy System Modeling: Y = H(X)
>>> Computing the localization matrix

Processing variables: 100%|██████████| 2/2 [00:01<00:00,  1.03it/s]

[12]:

da_solver.run(
    method='EnSRF',
)

>>> DA update

Updating time slices:   0%|          | 0/1 [00:00<?, ?it/s]Updating time slices: 100%|██████████| 1/1 [00:09<00:00,  9.08s/it]

[13]:

os.makedirs('./recons', exist_ok=True)
da_solver.post.to_netcdf(f'./recons/recon_Plio400ppm_R0.01_loc10000.nc')
da_solver.post

[13]:

<xarray.Dataset> Size: 248MB
Dimensions:  (time: 1, ncol: 48602, ens: 4, z_t: 60, nlat: 394, nlon: 320)
Coordinates:
    lat      (ncol) float64 389kB -35.26 -35.65 -36.26 ... 36.68 36.68 36.05
    lon      (ncol) float64 389kB 315.0 315.8 317.2 318.0 ... 133.7 136.3 135.0
  * ens      (ens) <U6 96B '1xCO2' '350ppm' '490ppm' '2xCO2'
    TLAT     (nlat, nlon) float64 1MB -84.56 -84.56 -84.56 ... 72.2 72.19 72.19
    TLONG    (nlat, nlon) float64 1MB 320.6 321.7 322.8 ... 318.9 319.4 319.8
    ULAT     (nlat, nlon) float64 1MB -84.3 -84.3 -84.3 ... 72.42 72.41 72.41
    ULONG    (nlat, nlon) float64 1MB 321.1 322.3 323.4 ... 319.2 319.6 320.0
  * z_t      (z_t) float32 240B 500.0 1.5e+03 2.5e+03 ... 5.125e+05 5.375e+05
  * time     (time) float64 8B 3.5
Dimensions without coordinates: ncol, nlat, nlon
Data variables:
    TS       (time, ncol, ens) float64 2MB 20.83 20.84 20.86 ... 20.2 20.25
    TEMP     (time, z_t, nlat, nlon, ens) float64 242MB nan nan nan ... nan nan

Validation#

[14]:

ds_truth = xr.open_dataset('./data/ppe_Plio400ppm_ann.nc').mean('time')
ds_truth

[14]:

<xarray.Dataset> Size: 66MB
Dimensions:  (ncol: 48602, z_t: 60, nlat: 394, nlon: 320)
Coordinates:
    lat      (ncol) float64 389kB ...
    lon      (ncol) float64 389kB ...
    TLAT     (nlat, nlon) float64 1MB ...
    TLONG    (nlat, nlon) float64 1MB ...
    ULAT     (nlat, nlon) float64 1MB ...
    ULONG    (nlat, nlon) float64 1MB ...
  * z_t      (z_t) float32 240B 500.0 1.5e+03 2.5e+03 ... 5.125e+05 5.375e+05
Dimensions without coordinates: ncol, nlat, nlon
Data variables:
    TS       (ncol) float32 194kB 20.86 20.63 20.17 19.86 ... 20.23 19.39 20.28
    PRECT    (ncol) float32 194kB 4.232e-08 4.387e-08 ... 7.107e-08 6.165e-08
    TEMP     (z_t, nlat, nlon) float32 30MB nan nan nan nan ... nan nan nan nan
    SALT     (z_t, nlat, nlon) float32 30MB nan nan nan nan ... nan nan nan nan
    aice     (nlat, nlon) float32 504kB nan nan nan nan nan ... nan nan nan nan
    PSL      (ncol) float32 194kB 1.018e+05 1.018e+05 ... 1.017e+05 1.017e+05
[16]:

ds_post = xr.open_dataset(f'./recons/recon_Plio400ppm_R0.01_loc10000.nc')
ds_post

[16]:

<xarray.Dataset> Size: 248MB
Dimensions:  (time: 1, ncol: 48602, ens: 4, z_t: 60, nlat: 394, nlon: 320)
Coordinates:
    lat      (ncol) float64 389kB ...
    lon      (ncol) float64 389kB ...
  * ens      (ens) <U6 96B '1xCO2' '350ppm' '490ppm' '2xCO2'
    TLAT     (nlat, nlon) float64 1MB ...
    TLONG    (nlat, nlon) float64 1MB ...
    ULAT     (nlat, nlon) float64 1MB ...
    ULONG    (nlat, nlon) float64 1MB ...
  * z_t      (z_t) float32 240B 500.0 1.5e+03 2.5e+03 ... 5.125e+05 5.375e+05
  * time     (time) float64 8B 3.5
Dimensions without coordinates: ncol, nlat, nlon
Data variables:
    TS       (time, ncol, ens) float64 2MB ...
    TEMP     (time, z_t, nlat, nlon, ens) float64 242MB ...
[17]:

import x4c

vn = 'TEMP'
da_truth = ds_truth[vn].isel(z_t=0).x.regrid()
da_prior = prior.ds[vn].isel(z_t=0).mean('ens').x.regrid()
da_post = ds_post[vn].isel(z_t=0).mean('ens').isel(time=0).x.regrid()

prior_truth = da_prior - da_truth
post_truth = da_post - da_truth

cfr.set_style('journal', font_scale=1.2)
fig, ax = da_truth.x.plot(
    levels=np.linspace(0, 40, 21),
    cbar_kwargs={'ticks': np.linspace(0, 40, 11)},
    title='Truth',
    cyclic=True,
)

fig, ax = prior_truth.x.plot(
    levels=np.linspace(-1, 1, 21),
    cbar_kwargs={'ticks': np.linspace(-1, 1, 11)},
    title='Prior $-$ Truth',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, '../figs/ppe_prior_truth_diff.pdf')

fig, ax = post_truth.x.plot(
    levels=np.linspace(-1, 1, 21),
    cbar_kwargs={'ticks': np.linspace(-1, 1, 11)},
    title='Posterior $-$ Truth',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, '../figs/ppe_post_truth_diff.pdf')

fig, ax = (np.abs(post_truth)/np.abs(prior_truth)).x.plot(
    levels=np.linspace(0, 2, 21),
    extend='max',
    cbar_kwargs={'ticks': np.linspace(0, 2, 11), 'label': 'ratio'},
    title='Abs(Posterior Bias) / Abs(Prior Bias)',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, './figs/ppe_offline_improvement.pdf')

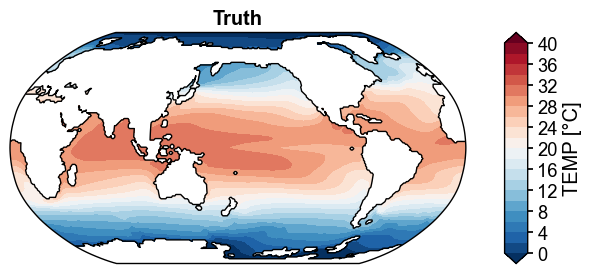

../_images/notebooks_da-ppe-equilibrium_16_0.png

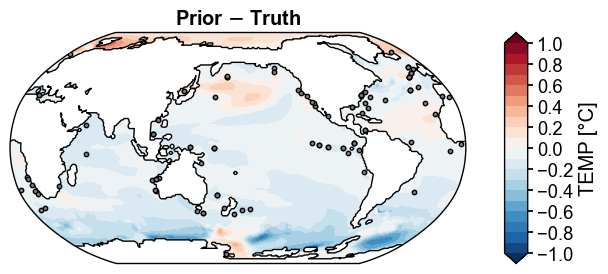

../_images/notebooks_da-ppe-equilibrium_16_1.png
Directory created at: "../figs"
Figure saved at: "../figs/ppe_prior_truth_diff.pdf"

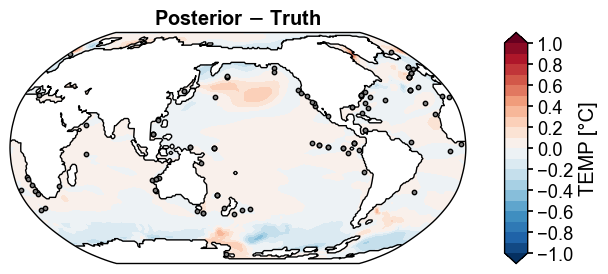

../_images/notebooks_da-ppe-equilibrium_16_3.png
Figure saved at: "../figs/ppe_post_truth_diff.pdf"

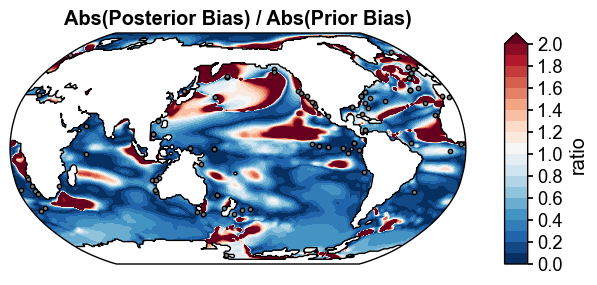

../_images/notebooks_da-ppe-equilibrium_16_5.png
Figure saved at: "figs/ppe_offline_improvement.pdf"

[19]:

vn = 'TEMP'
da_truth = ds_truth[vn].isel(z_t=0).x.regrid()
da_prior = prior.ds[vn].isel(z_t=0).sel(ens='350ppm').x.regrid()
da_post = ds_post[vn].isel(z_t=0).sel(ens='350ppm').isel(time=0).x.regrid()

prior_truth = da_prior - da_truth
post_truth = da_post - da_truth

x4c.set_style('journal', font_scale=1.2)
fig, ax = da_truth.x.plot(
    levels=np.linspace(0, 40, 21),
    cbar_kwargs={'ticks': np.linspace(0, 40, 11)},
    title='Truth',
    cyclic=True,
)

fig, ax = prior_truth.x.plot(
    levels=np.linspace(-1, 1, 21),
    cbar_kwargs={'ticks': np.linspace(-1, 1, 11)},
    title='Prior $-$ Truth',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, '../figs/ppe_prior_truth_diff.pdf')

fig, ax = post_truth.x.plot(
    levels=np.linspace(-1, 1, 21),
    cbar_kwargs={'ticks': np.linspace(-1, 1, 11)},
    title='Posterior $-$ Truth',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, '../figs/ppe_post_truth_diff.pdf')

fig, ax = (np.abs(post_truth)/np.abs(prior_truth)).x.plot(
    levels=np.linspace(0, 2, 21),
    extend='max',
    cbar_kwargs={'ticks': np.linspace(0, 2, 11), 'label': 'ratio'},
    title='Abs(Posterior Bias) / Abs(Prior Bias)',
    df_sites=obs.df[['lat', 'lon']],
    site_markersizes=10,
    legend=False,
    cyclic=True,
)
x4c.showfig(fig)
x4c.savefig(fig, './figs/ppe_offline_improvement_350ppm.pdf')
../_images/notebooks_da-ppe-equilibrium_17_0.png

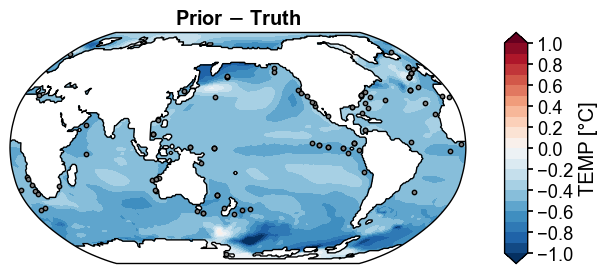

../_images/notebooks_da-ppe-equilibrium_17_1.png
Figure saved at: "../figs/ppe_prior_truth_diff.pdf"
../_images/notebooks_da-ppe-equilibrium_17_3.png
Figure saved at: "../figs/ppe_post_truth_diff.pdf"

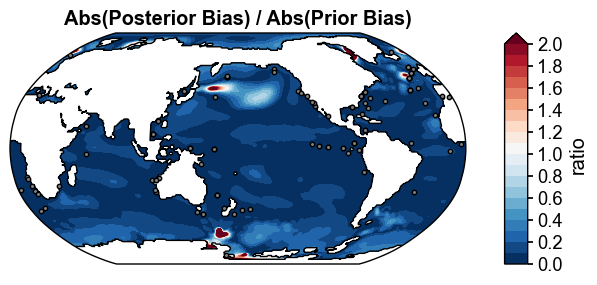

../_images/notebooks_da-ppe-equilibrium_17_5.png
Figure saved at: "figs/ppe_offline_improvement_350ppm.pdf"

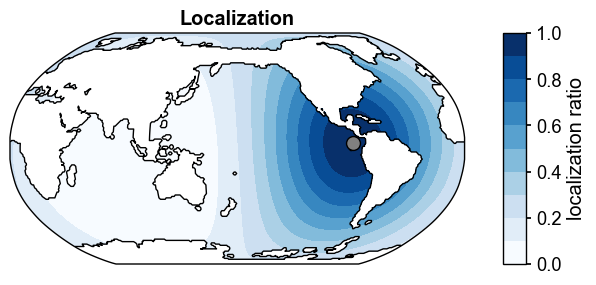

[20]:

obs_idx = 10
ds_loc = cfr.utils.states2ds(da_solver.L[:, obs_idx], prior.ds.isel(ens=0))
fig, ax = ds_loc['TEMP'].isel(z_t=0).x.regrid().x.plot(
    cmap='Blues',
    levels=np.linspace(0, 1, 11),
    cbar_kwargs={'label': 'localization ratio', 'ticks': np.linspace(0, 1, 6)},
    title='Localization',
    extend='neither',
    df_sites=obs.df[['lat', 'lon']].iloc[[obs_idx]],
    legend=False,
)
np.nanmax(da_solver.L)

/glade/work/fengzhu/conda-envs/cfr-py313/lib/python3.13/site-packages/xesmf/smm.py:131: UserWarning: Input array is not C_CONTIGUOUS. Will affect performance.
  warnings.warn('Input array is not C_CONTIGUOUS. ' 'Will affect performance.')

[20]:

np.float64(0.9999998434333481)
../_images/notebooks_da-ppe-equilibrium_18_2.png
[ ]:
Contents
